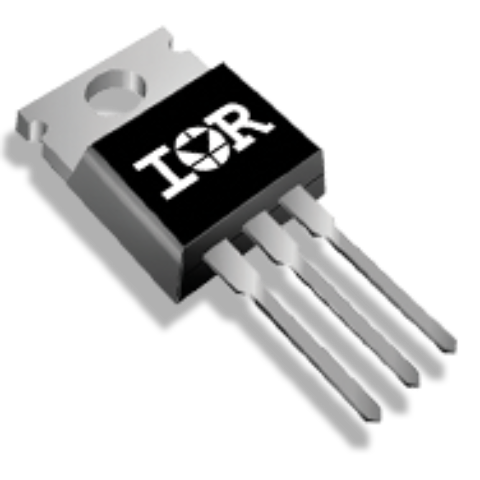

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 40V 130A (Tc) 200W (Tc) Through Hole TO-220AB
IRL1004 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Polarity | N-CH |
| Power Dissipation | 200W (Tc) |
| Drain to Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Ids) | 130A |
| Rise Time | 210 ns |
| Input Capacitance (Ciss) | 5330pF @25V(Vds) |
| Fall Time | 14 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200W (Tc) |
| Show | |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
