Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 2 Pin |

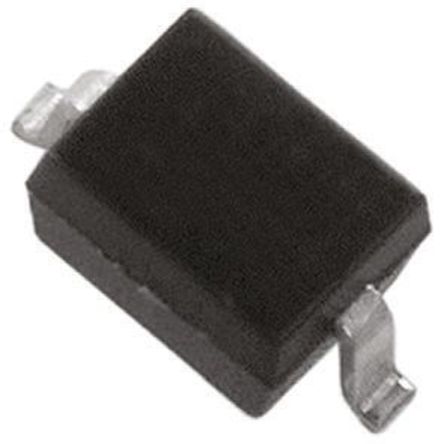

Case/Package | SOD-323 |
Capacitance Tolerance | ±6 % |
Number of Positions | 2 Position |
Forward Voltage | 900mV @10mA |
Power Dissipation | 300 mW |
Test Current | 5 mA |
Zener Voltage | 6.8 V |
Input Power (Max) | 300 mW |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -65 ℃ |
Power Dissipation (Max) | 300 mW |
Show | |
Size-Length | 1.8 mm |
Size-Width | 1.35 mm |
Size-Height | 1 mm |
Operating Temperature | -65℃ ~ 150℃ |
Temperature Coefficient | 2.85 mV/K |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
