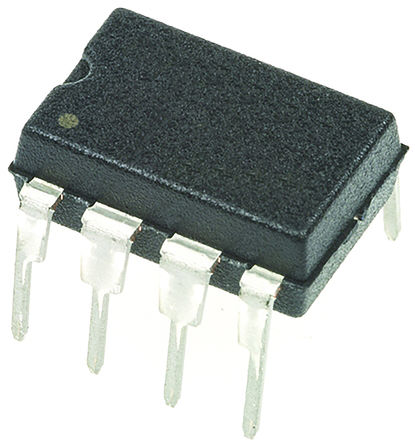

Image is for your reference only,please check specifications for details

OP221GSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC692878
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES OP221GSZ Operational Amplifier, Dual, 2 Amplifier, 600kHz, 0.3V/µs, 5V to 30V, SOIC, 8Pins
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OP221GSZ is a monolithic dual Operational Amplifier features wide input voltage range, low supply current drain, extremely low input offset voltage, low offset voltage drift, low noise voltage and low bias current. It is suited for operation from batteries or unregulated power supplies. The excellent specifications of the individual amplifier combined with the tight matching and temperature tracking between channels provided high-performance in instrumentation amplifier designs. It is fully compensated and protected. Matching between channels is provided on all critical parameters including input offset voltage, tracking of offset voltage vs. temperature, non-inverting bias currents and common-mode rejection.
150µV Maximum low input offset voltage
550µA Maximum low supply current
0.75µV/°C Low input offset voltage drift
1500V/mV Minimum high open-loop gain
3µV/V High PSRR
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.

Show

OP221GSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	850 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	75 dB
Bandwidth	600 kHz
Slew Rate	300 mV/μs
Gain Bandwidth Product	600 kHz
Input Offset Voltage	250 µV
Input Bias Current	70 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	600 kHz
Minimum CMRR Range	75 dB
Supply Voltage	5V ~ 30V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
