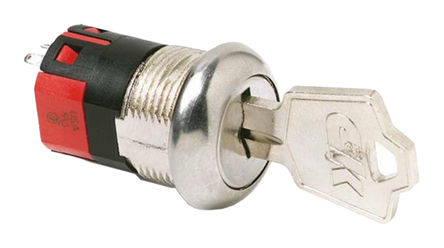

Image is for your reference only,please check specifications for details

Y101132C203NQ - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC14961650
Category:
Keylock Switch, Switch KeyLock
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Switch Key Lock SPDT 90° Flat Key 4A 250VAC 28VDC Solder Lug Panel Mount
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Y101132C203NQ is a single-pole single-throw 2-position Tumbler Key Switch Lock with flat actuator style and 90° angle of throw. Zinc alloy with stainless steel facing lock, two nickel-plated brass keys, with code number, standard keys, glass filled polyester housing, silver-plated copper Q contacts, zinc alloy mounting nut, zinc-plated steel mounting clip, nickel-plated brass dress nut and epoxy terminal seal.
UL94V-0 Flammability rating
Anti-static switch - exceeds 20kVDC static resistance
Wire leads and harnesses available

Show

Y101132C203NQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Lug
Case/Package	-
Current Rating	4.00 A
Contacts Type	SPST
Number of Positions	2 Position
Contact Resistance	10.0 mΩ
Contact Current Rating	4 A
Current Rating (Max)	4A @125VAC, 28VDC
Input Power (Max)	0.4VA @20VAC, 20VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (DC Max)	28 V
Voltage Rating (AC Max)	250 V
Maximum Contact Resistance (Max)	<10 mΩ
	Show
Size-Length	22.23 mm
Size-Width	25.65 mm
Size-Height	34.85 mm
Contact Material	Copper
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
