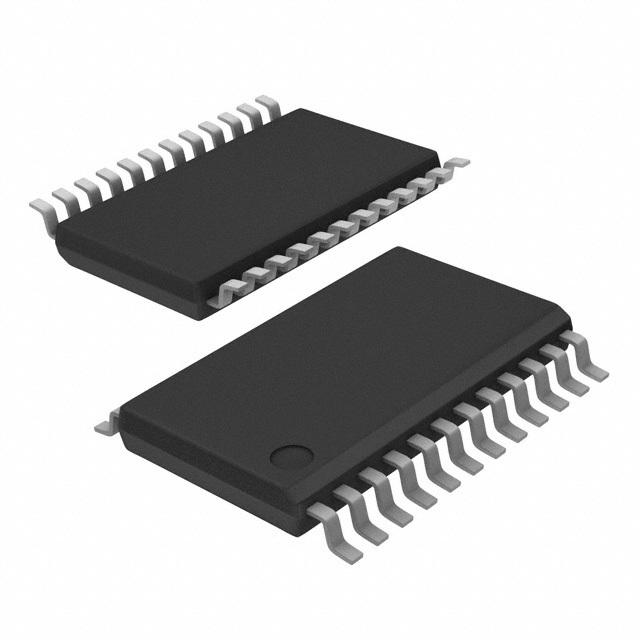

Image is for your reference only,please check specifications for details
- TS3A27518EIPWRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC7499593
-
Category:Interface IC, Interface Controller
-
Package:TSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:Automotive 6Bit, 1-of-2 Mux/Demux with 240MHz Bandwidth 24-TSSOP -40℃ to 85℃
-
Stock Locations:
-
Availability:181 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.68
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS3A27518E-Q1 is a 6-bit 1-of-2 mux/demux designed to operate from 1.65 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction. The TS3A27518E-Q1 has two control pins, each controlling three 1-of-2 muxes at the same time, and an enable pin that is used to put all outputs in high-impedance mode. The control pins are compatible with 1.8-V logic thresholds and are backward compatible with 2.5-V and 3.3-V logic thresholds as well.
- The TS3A27518E-Q1 allows any SD, SDIO, and multimedia card host controllers to be expanded out to multiple cards or peripherals because the SDIO interface consists of 6-bits: CMD, CLK, and Data[0:3] signals. The TS3A27518E-Q1 has two control pins that give additional flexibility to the user, for example, the ability to mux two different audio-video signals in equipment such as an LCD television, an LCD monitor, or a notebook docking station.
TS3A27518EIPWRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Supply Voltage (DC) | 1.65V ~ 3.60V |
| Supply Current | 40 nA |
| Number of Circuits | 6 Circuit |
| Number of Channels | 6 Channel |
| Voltage Nodes | 1.80 V, 2.50 V, 3.00 V, 3.30 V |
| Bandwidth | 240 MHz |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| 3dB Bandwidth | 240 MHz |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
