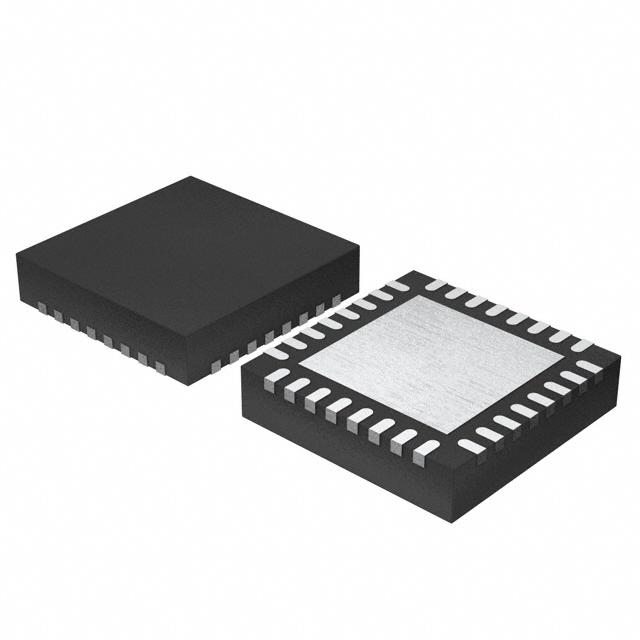

Image is for your reference only,please check specifications for details
- MSP430G2553IRHB32R - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC3855665
-
Category:Microcontroller, MCU IC
-
Package:QFN-32
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit MSP430 RISC 16KB Flash 2.5V/3.3V 32Pin VQFN EP T/R
-
Stock Locations:
-
Availability:889 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.88
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MSP430G2553IRHB32R is an ultra-low-power Mixed-signal Microcontroller consists of several device features different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs. This ultra-low-power mixed signal microcontroller with built-in 16-bit timers, up to 24 I/O capacitive-touch enabled pins, a versatile analogue comparator and built-in communication capability using the universal serial communication interface. In addition this family has a 10-bit analogue-to-digital (A/D) converter. Serial on-board programming, no external programming voltage needed, programmable code protection by security fuse.
- Five power-saving modes
- Less than 1µs ultra-fast wake-up from standby mode
- 16-bit RISC architecture
- 62.5ns Instruction cycle time
- Internal frequencies up to 16MHz with four calibrated frequency
- Internal very-low-power low-frequency (LF) oscillator
- 32kHz Crystal
- External digital clock source
- Two 16-bit Timer_A with three capture/compare registers
- Up to 24 capacitive-touch enabled I/O pins
- Universal serial communication interface (USCI)
- On-chip comparator for analogue signal compare function or slope analogue-to-digital conversion
- 10-bit 200ksps Analogue-to-digital converter with internal reference, sample-and-hold and AUTOSCAN
- Brownout detector
- On-chip emulation logic with SPY-BI-wire interface
- Green product and no Sb/Br
MSP430G2553IRHB32R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | QFN-32 |
| Frequency | 16 MHz |
| Supply Voltage (DC) | 1.80V (min) |
| Number of Positions | 32 Position |
| Clock Speed | 16.0 MHz |
| RAM Memory Size | 512 b |
| Number of Bits | 16 Bit |
| FLASH Memory Size | 16384 B |
| Number of UARTs | 1 UART |
| Number of ADCs | 1 ADC |
| FRAM Memory Size | 0 B |
| Number of Inputs and Outputs | 24 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2018/01/15 |
