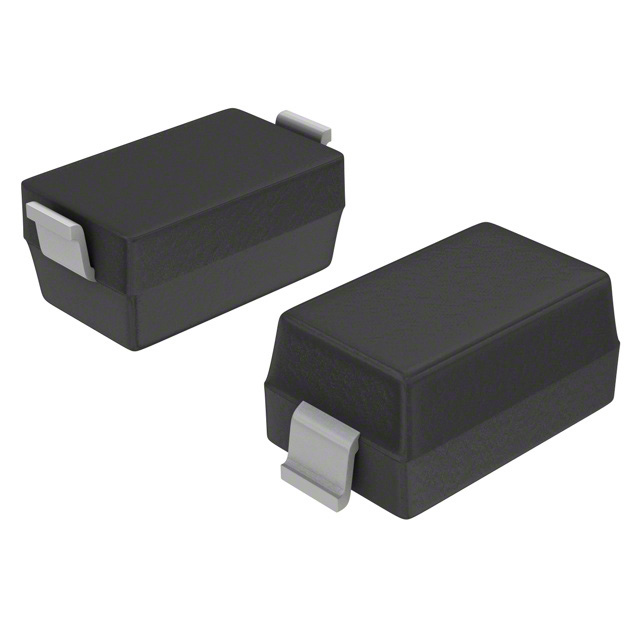

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MMSD4148 is a high conductance fast small Signal Diode. This small signal diode is general usage and suitable for many different applications.
- 400mW Power dissipation
- 312°C/W Junction-to-ambient thermal resistance
- 4pF Total capacitance
MMSD4148 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SOD-123 |
| Number of Positions | 2 Position |
| Forward Voltage | 1 V |
| Power Dissipation | 400 mW |
| Thermal Resistance | 312℃/W (RθJA) |
| Reverse recovery time | 4 ns |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Forward Current | 200 mA |
| Max Forward Surge Current (Ifsm) | 2 A |
| Max Reverse Leakage Current (Ir) | 5uA |
| Maximum Forward Voltage (Max) | 1 V |
| Forward Current (Max) | 200 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | 150℃ (Max) |
| Power Dissipation (Max) | 425 mW |
| Show | |
| Size-Length | 2.85 mm |
| Size-Width | 1.8 mm |
| Size-Height | 1.18 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 3000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
