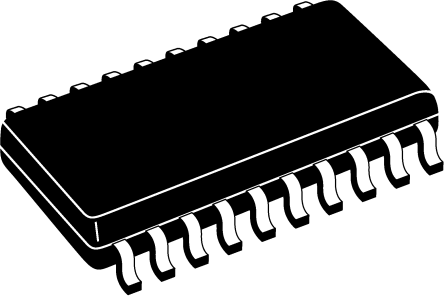

Image is for your reference only,please check specifications for details

CS8190EDWFR20G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3872726
Category:
Motor Driver
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
Motor Driver/Controller, Stepper, 8.5V to 16V supply, 6.5V/10mA/4Outputs, SOIC-20
Stock Locations:
Availability:
205 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.2

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CS8190 is specifically designed for use with air-core meter movements. The IC provides all the functions necessary for an analog tachometer or speedometer. The CS8190 takes a speed sensor input and generates sine and cosine related output signals to differentially drive an air-core meter. Many enhancements have been added over industry standard tachometer drivers such as the CS289 or LM1819. The output utilizes differential drivers which eliminates the need for a zener reference and offers more torque. The device withstands 60V transients which decreases the protection circuitry required. The device is also more precise than existing devices allowing for fewer trims and for use in a speedometer.
Features
---
|
Direct Sensor Input
High Output Torque
Low Pointer Flutter
High Input Impedance
Overvoltage Protection
Return to Zero
Internally Fused Leads in PDIP-16 and SO-20WB Packages
Pb-Free Packages are Available
