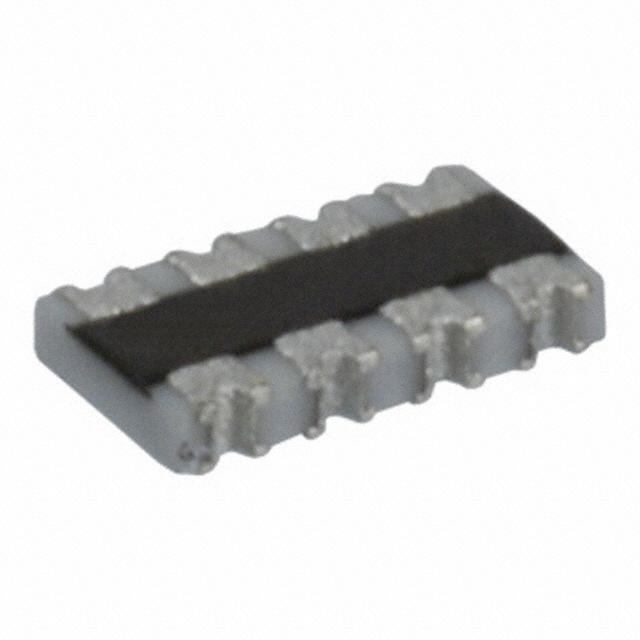

Image is for your reference only,please check specifications for details
- 741C083220JP - CTS
-
Manufacturer:CTS
-
ManyChip's Part#:MC28589546
-
Category:Resistor Array
-
Package:0804
-
Datasheet:Datasheet 3D Model
-
Description:Res Thick Film Array 22Ω 5% 0.25W(1/4W) ±200ppm/℃ ISOL Molded 8Pin 0804(4 X 0402) Concave SMD T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- By combining multiple resistors into a single chip, the 741C083220JP resistor array, developed by CTS, can help you save space and power in your circuit design. This dependable part has a power rating of 0.25 (1/4) W and a power rating per resistor of 0.063 (1/16) W. This product"s 4 resistors have a value of 22 Ohm. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology. The 741C083220JP part has a concave termination style. This product"s terminal pitch is 0.5 mm. This product is 2 mm long, 0.38 mm tall and 1 mm deep.
741C083220JP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | 0804 |
| Number of Contacts | 8 Contact |
| Voltage Rating (DC) | 25.0 V |
| Capacitance Tolerance | ±5 % |
| Power Rating | 0.25 W |
| Power Dissipation | 0.063 W |
| Resistance | 22 Ω |
| Resistance Tolerance | ±5 % |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 25 V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1 mm |
| Size-Height | 0.38 mm |
| Size-Thickness | 350 µm |
| Operating Temperature | -55℃ ~ 125℃ |
| Temperature Coefficient | ±200 ppm/℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8533100057 |
| ECCN Code | EAR99 |
