Description

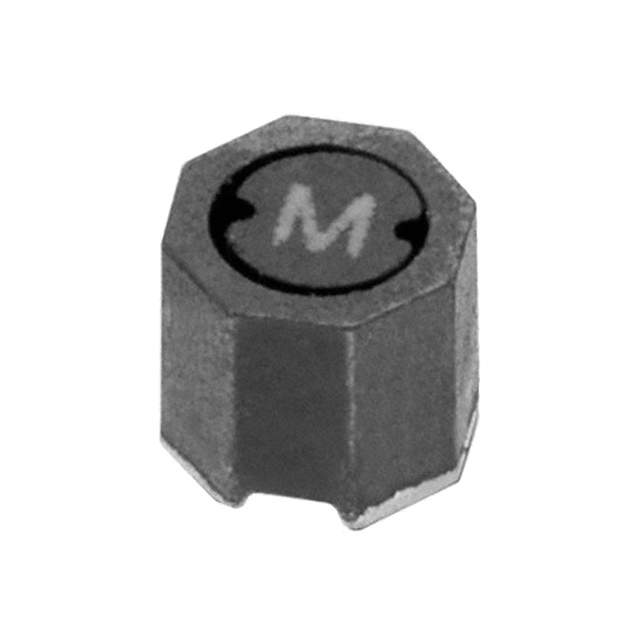

- The 744025150 is a surface mount shielded tiny Power Inductor with ferrite base. This WE-TPC high current capability extremely flat power inductor supports 130MHz typical self-resonant frequency and magnetic shielding of the inductor results in a low leakage field. It is recommended that the temperature of the inductor does not exceed 125°C under worst case operating conditions.
- Reflow solder profile (recommended)
744025150 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 2.8mm x 2.8mm x 2.8mm |
| Current Rating | 720 mA |
| Capacitance Tolerance | ±20 % |
| Inductance | 15 µH |
| Self Resonant Frequency | 32 MHz |
| Part Family | WE-TPC |
| Resonant Frequency | 32.0 MHz |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | 400 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.4 Ω |
| Show | |
| Size-Length | 2.8 mm |
| Size-Width | 2.8 mm |
| Size-Height | 2.8 mm |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
