Description

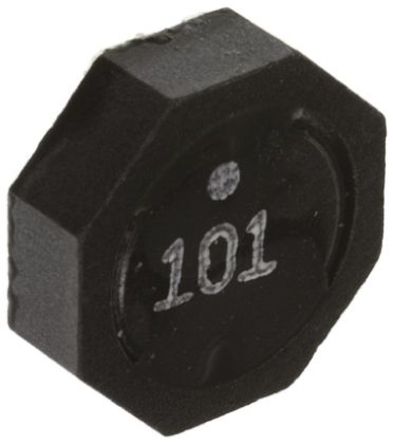

- Wurth Electronics WE-TPC series are SMD shielded tiny power inductors with a 4 pad design which provides great mechanical strength. Compared to the unshielded types, the WE-TPC series reduces stray field due to the magnetic shielding.
- Extremely flat power inductor
- High current capability
- Magnetically shielded which results in a low leakage field
- Recommended solder profile: Reflow
- Operating temperature: -40°C to +125°C
7440650047 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 10mm x 10mm x 2.8mm |
| Current Rating | 4.6 A |
| Capacitance Tolerance | ±30 % |
| Inductance | 4.7 µH |
| Self Resonant Frequency | 40 MHz |
| Part Family | WE-TPC |
| Resistance | 20.0 mΩ |
| Resonant Frequency | 40.0 MHz |
| Inductance Tolerance | ±30 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤23 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.023 Ω |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 10 mm |
| Size-Height | 2.8 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
