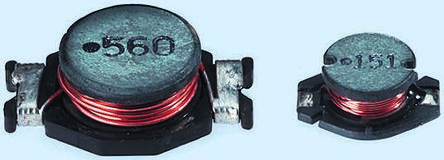

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The WE-PD4 series compact size SMD Power Inductor with low-loss ferrite core. It is perfectly suitable for switching regulators and noise suppression.
- Application frequency range up to 10MHz
- Reflow recommended solder profile
- -40 to 125°C Operating temperature range
- Cleaning agents that are used to clean application might damage or change the characteristics of the component, body, pins or termination.
7445510 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 6.6mm x 4.45mm x 2.92mm |
| Current Rating | 1.2 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 10 µH |
| Self Resonant Frequency | 26 MHz |
| Part Family | WE-PD4 |
| Resistance | 121 mΩ |
| Resonant Frequency | 35.0 MHz |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤160 mΩ |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.16 Ω |
| Show | |
| Size-Length | 6.6 mm |
| Size-Height | 2.92 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
