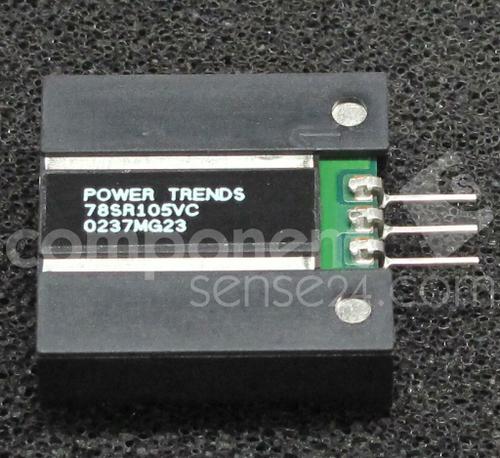

Image is for your reference only,please check specifications for details

78SR105VC - TI
Manufacturer:
TI
ManyChip's Part#:
MC143031939
Category:
DC to DC Converter, DC/DC Converter
Package:
SIP-3
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS 78SR105VC Linear Regulator DC-DC Converter, Through Hole, 1 Output, 10V, 1.5A
Stock Locations:
Availability:
292 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 27.16

Updated at 28/06/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

1.5 AMP POSITIVE STEP-DOWN INTEGRATED SWITCHING REGULATOR
The 78SR100 is a series of wide input voltage, 3-terminal Integrated Switching Regulators (ISRs). These ISRs have a maximum output current of 1.5A and an output voltage that is laser trimmed to a variety of industry standard voltages.
• Very Small Footprint
• High Efficiency > 85%
• Self-Contained Inductor
• Internal Short-Circuit Protection
• Over-Temperature Protection
• Wide Input Range

Show

78SR105VC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	SIP-3
Frequency	650 kHz
Supply Voltage (DC)	7.00V (min)
Current Rating	1.50 A
Number of Outputs	1 Output
Output Voltage	10 V
Output Current	1.5 A
Output Power	7.5 W
Switching Frequency	700 kHz
Topology	Buck
Input Voltage (Max)	30 V
Input Voltage (Min)	7 V
Input Voltage (DC Max)	30 V
Input Voltage (DC Min)	7 v
Output Current (Max)	1.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1 %
Supply Voltage (Min)	7 V
Input Voltage	7V ~ 30V
	Show
Size-Length	22.9 mm
Size-Width	7.87 mm
Size-Height	23.9 mm
Weight	6.50 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
