Description

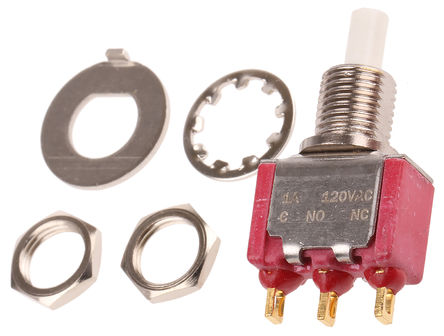

The 8121SHZGE is a single-pole double-throw (SPDT) snap-acting momentary Pushbutton Switch with solder lug termination, plunger, 0.250-inch high flat bushing and ON-Momentary function. The 8020 series switch has gold plated over silver contact and stainless steel housing. Epoxy terminal seal is compatible with bottom-wash cleaning.
Positive tactile feel
1000Vrms at sea level Minimum dielectric strength
-30 to 65°C Operating temperature range
Solderability as per MIL-STD-202F method 208D or EIA RS-186E method 9 (1 hour steam aging)

Show

8121SHZGE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Lug, Snap-In
Case/Package	Solder lug
Contact Plating	Gold
Voltage Rating (DC)	28 V
Voltage Rating (AC)	120 V
Current Rating	1 A
Insulation Resistance	1 GΩ
Number of Rows	1 Row
Contacts Type	SPDT
Number of Positions	2 Position
Contact Current Rating	1A @28VDC
Current Rating (Max)	1A @120VAC, 28VDC
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	120 VAC
Voltage Rating (DC Max)	28 V
Voltage Rating (AC Max)	120 V
Maximum Contact Resistance (Max)	<50 mΩ
	Show
Size-Length	12.7 mm
Size-Width	7.98 mm
Size-Height	26.24 mm
Contact Material	Coin Silver
Operating Temperature	-30℃ ~ 75℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509040
ECCN Code	EAR99
