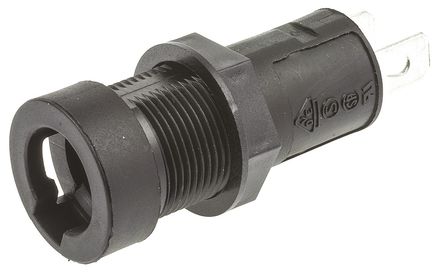

Image is for your reference only,please check specifications for details
- 82000000005 - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC3108611
-
Category:Fuse Holder
-
Datasheet:Datasheet 3D Model
-
Description:82000000005 — это миниатюрный держатель плавкого предохранителя на 16 А/250 В с термопластичным полиамидом PA6.6, лужеными быстросъемными клеммами и антикоррозионными металлическими деталями из медного сплава. Держатель плавкого предохранителя для панельного монтажа используется для защищенных от поражения электрическим током предохранителей размером 5 x 20 мм.
-
Stock Locations:
-
Availability:49 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.56
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Серия 820 от Littlefuse — это держатели предохранителей для панельного монтажа, закрытого типа, защищенные от поражения электрическим током. Эти держатели совместимы с предохранителями размером 5 мм x 20 мм и одобрены по стандартам UL, CSA, SEMKO, VDE, IEC 60127-6.
- Термопластичный материал класса UL 94-V0
- Доступен в черном цвете
- Номинальное напряжение 250 В
- Номинальный ток 6,3 А (VDE) и 16 А (UL/CSA)
- Номинальная мощность 2,5 Вт
- Клеммы для пайки или быстросъемные клеммы 4,8 мм
- Защита IP40 (IEC 60529) и PC2 (IEC 60127-6)
- Диапазон рабочих температур от -25°C до 70°C
82000000005 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Quick Connect, Panel |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 6.3 A |
| Insulation Resistance | 1.00 GΩ |
| Number of Circuits | 1 Circuit |
| Flammability Rating | UL 94 V-0 |
| Power Dissipation | 4.00 W |
| Contact Resistance | 5.00 mΩ |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 250 V |
| Show | |
| Size-Length | 32.0 mm |
| Size-Width | 32 mm |
| Size-Height | 32 mm |
| Size-Diameter | 15.0 mm |
| Color | Black |
| Contact Material | Copper Alloy |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
