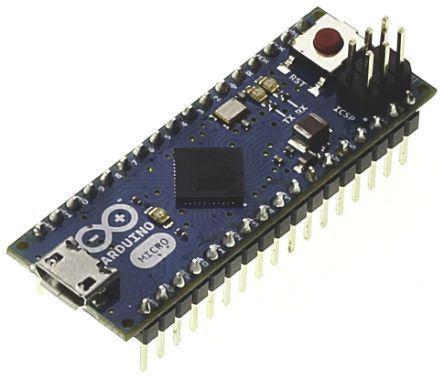

Image is for your reference only,please check specifications for details

A000053 - Arduino
Manufacturer:
Arduino
ManyChip's Part#:
MC3029203
Category:
Microprocessor Primary Platform
Datasheet:
Datasheet 3D Model
Description:
ATmega32u4 Microcontroller Micro Development Board 16MHz CPU 2.5KB RAM 1KB/32KB EEPROM/Flash
Stock Locations:
Availability:
1,090 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 23.8

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The A000053 is a Arduino Micro development board based on the ATmega32u4 microcontroller. The ATmega32u4 is a 8bit AVR RISC based microcontroller featuring 32KB flash memory, 2.5KB SRAM, 1KB EEPROM, USB 2.0 full speed/low speed device, 10bit A to D converter and JTAG interface for on chip debug. The board contains everything needed to support the microcontroller, simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard. The Micro is similar to the Arduino Leonardo in that the ATmega32u4 has built in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial/COM port. It also has other implications for the behaviour of the board. The Arduino Micro can be powered via the micro USB connection or with an external power supply. The power source is selected automatically.
16MHz crystal oscillator
ICSP header
Reset button
Micro USB connection
20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs)
Input voltage (recommended) range from 7V to 12V
Input Voltage (limit) range from 6V to 20V
32KB flash memory of which 4KB used by bootloader
2.5KB SRAM
1KB EEPROM
The recommended range is 7 to 12 volts, if using more than 12V the voltage regulator may overheat and damage the board.

Show

A000053 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
RAM Memory Size	2.5 KB
Number of Bits	8 Bit
Core Architecture	AVR
	Show
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
