Description
- Product Details
- The AD1580 is a low cost, 2-terminal (shunt), precision band gap reference. It provides an accurate 1.225 V output for input currents between 50 μA and 10 mA.
- The superior accuracy and stability of the AD1580 is made possible by the precise matching and thermal tracking of on-chip components. Proprietary curvature correction design techniques have been used to minimize the nonlinearities in the voltage output temperature characteristics. The AD1580 is stable with any value of capacitive load.
- The low minimum operating current makes the AD1580 ideal for use in battery-powered 3 V or 5 V systems. However, the wide operating current range means that the AD1580 is extremely versatile and suitable for use in a wide variety of high current applications.

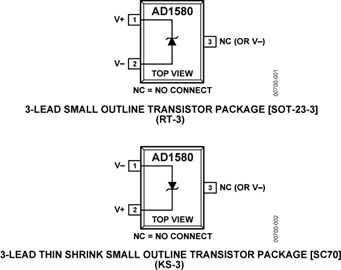

- The AD1580 is available in two grades, A and B, both of which are provided in the SOT-23 and SC70 packages, the smallest surface-mount packages available. Both grades are specified over the industrial temperature range of −40°C to +85°C.
- **Applications**
- Portable, battery-powered equipment
- Cellular phones, notebook computers, PDAs, GPSs, and DMMs
- Computer workstations
- Suitable for use with a wide range of video RAMDACs
- Smart industrial transmitters
- PCMCIA cards
- Automotive
- 3 V/5 V, 8-bit to 12-bit data converters
- ### Features and Benefits
- Wide operating range: 50 µA to
- 10 mA
- Initial accuracy: ±0.1% maximum
- Temperature drift: ±50 ppm/°C maximum
- Output impedance: 0.5 Ω maximum
- Wideband noise (10 Hz to 10 kHz):
- 20 µV rms
- Operating temperature range: –40°C to +85°C
- High ESD rating: 4 kV human body model, 400 V machine model
- Compact, surface-mount SOT-23 and SC70 packages
AD1580 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
