AD22057RZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC696534
Category:
Power Monitor
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD22057RZ Current Sense Amplifier, Single-Supply, 2 Amplifier, SOIC, 8Pins, -40℃, 125℃
Stock Locations:
Availability:
228 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.04

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

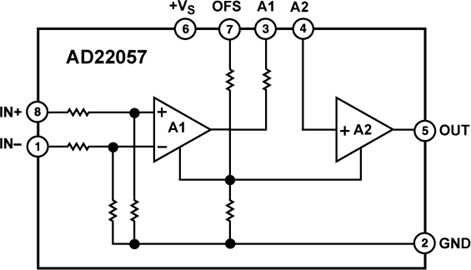

The AD22057RZ is a single-supply Difference Amplifier for amplifying and low-pass filtering small differential voltages from sources having a large common-mode voltage. Supply voltages from +3 to +36V can be used. The input common-mode range extends from below ground to +24V using a +5V supply with excellent rejection of this common-mode voltage. This is achieved by the use of a special resistive attenuator at the input, laser trimmed to a very high differential balance. Provisions are included for optional low-pass filtering and gain adjustment. An accurate midscale offset feature allows bipolar signals to be amplified.
Accurate midscale offset capability
Transient spike protection and RFI filters included
Indefinite output short-circuit duration
Drives 1kR load to +4V using Vs=+5V
400kR Differential input resistance
60V Peak input voltage (40ms)
-34V Reversed supply protection
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.

Show

AD22057RZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	3.00V (min)
Output Voltage	0.02V ~ 4.8V
Output Current	5 mA
Supply Current	200 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	90 dB
Bandwidth	30 kHz
Slew Rate	200 mV/μs
Input Offset Voltage	30 µV
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Minimum CMRR Range	80 dB
Supply Voltage	3.3V ~ 24V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	3 V
Input Voltage	5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
