AD2S80ABD - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC700800
Category:
DA Converter, AD Converter IC
Package:
DIP-40
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD2S80ABD Analog to Digital Converter, Dual, 16Bit, Dual (+/-), -10.8V, 13.2V, DIP
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 623.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

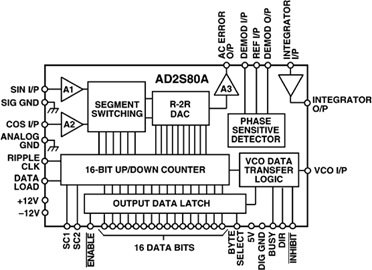

* Monolithic (BiMOS ll) Tracking R/D Converter * 40-Lead DIP Packagev44-Terminal LCC Package * 10-,12-,14-, and 16-Bit Resolution Set by User * Ratiometric Conversion * Low Power Consumption: 300 mW Typ * Dynamic Performance Set by User * High Max Tracking Rate 1040 RPS (10 Bits) * Velocity Output * Industrial Temperature Range Versions * Military Temperature Range Versions * ESD Class 2 Protection (2,000 V Min)/883 B Parts Available

Show

AD2S80ABD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	DIP-40
Supply Voltage (DC)	-10.8 V (min)
Supply Current	19.0 mA
Number of Channels	2 Channel
Number of Bits	16 Bit
Power Dissipation	300 mW
Power Consumption	300 mW
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	13.2 V
	Show
Size-Height	2.29 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
