AD2S80AJD - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1656121
Category:
Analog to Digital, ADC IC
Package:
DIP-40
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD2S80AJD Analog to Digital Converter, 16Bit, Dual (+/-), -10.8V, 13.2V, DIP
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 404.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

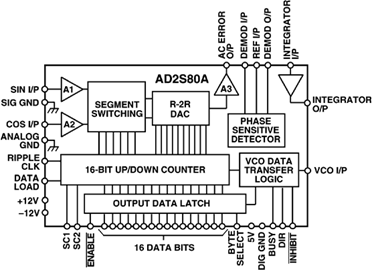

The AD2S80AJD is a variable resolution, Monolithic Resolver-to-digital Converter manufactured on a BiMOS II process that combines the advantages of CMOS logic and bipolar high accuracy linear circuits on the same chip. The converter allows users to select their own resolution and dynamic performance with external components. This allows the users great flexibility in defining the converter that best suits their system requirements. The AD2S80A converts resolver format input signals into a parallel natural binary digital word using a ratiometric tracking conversion method. This ensures high-noise immunity and tolerance of lead length when the converter is remote from the resolver. An analog signal proportional to velocity is also available and can be used to replace a tachogenerator.
Monolithic (BiMOS ll) tracking R/D converter
Ratiometric tracking conversion
Dynamic performance set by user
Velocity output
Low power consumption

Show

AD2S80AJD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	DIP-40
Supply Voltage (DC)	-10.8 V (min)
Supply Current	19 mA
Number of Channels	2 Channel
Number of Positions	40 Position
Number of Bits	16 Bit
Power Dissipation	300 mW
Power Consumption	300 mW
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage (Max)	13.2 V
	Show
Size-Length	53.24 mm
Size-Width	15.75 mm
Size-Height	4.2 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
