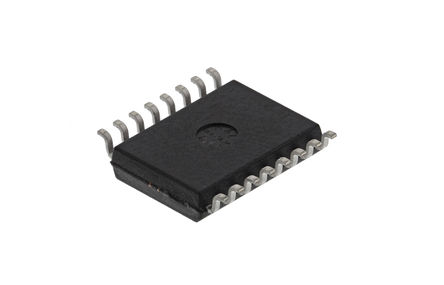

AD421BRZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC351968
Category:
Digital to Analog, DAC IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
Digital to Analog Converter, 16Bit, 125 SPS, Serial, 2.95V to 5.05V, SOIC, 16Pins
Stock Locations:
Availability:
1,140 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.17

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD421BRZ is a complete loop-powered Digital-to-analog Converter (DAC) designed to meet the needs of smart transmitter manufacturers in the Industrial Control industry. It provides a high precision, fully integrated. The AD421 is ideal for extending the resolution of smart 4 to 20mA transmitters. This regulator provides either 5/3.3/3V regulated output voltage. The part also contains 1.25 and 2.5V precision references. The AD421 thus eliminates the need for a discrete regulator and voltage reference. The only external components required are a number of passive components and a pass transistor to span large loop voltages. The AD421 can be used with standard HART FSK protocol communication circuitry without any degradation in specified performance. The high speed serial interface is capable of operating at 10Mbps and allows for simple connection to commonly-used microprocessors and microcontrollers via a standard three-wire serial interface.
HART® Compatible
Programmable alarm current capability
Flexible high speed serial interface
750µA Quiescent current max

Show

AD421BRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.05V (max)
Operating Voltage	2.95V ~ 5.05V
Number of Outputs	1 Output
Supply Current	575 µA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	16 Bit
Power Dissipation	0.45 W
Sample Rate	125 SPS
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Number of DACs	1 DAC
Supply Voltage	2.95V ~ 5.05V
Supply Voltage (Max)	5.05 V
Supply Voltage (Min)	2.95 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2017/07/07
