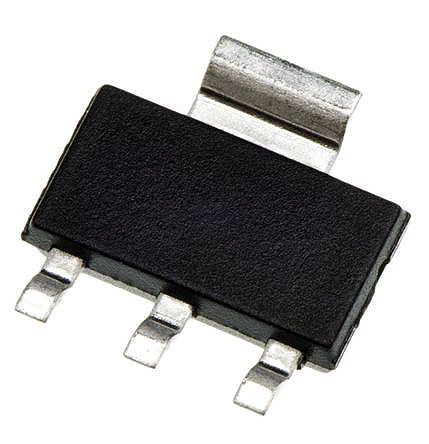

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BSP613P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-223-4
Voltage Rating (DC)	-60.0 V
Current Rating	-2.90 A
Polarity	P-CH
Power Dissipation	1.8W (Ta)
Input Capacitance	875 pF
Gate Charge	33.0 nC
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	2.90 A
Input Capacitance (Ciss)	875pF @25V(Vds)
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.8W (Ta)
	Show
Size-Length	40 mm
Size-Width	40 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
