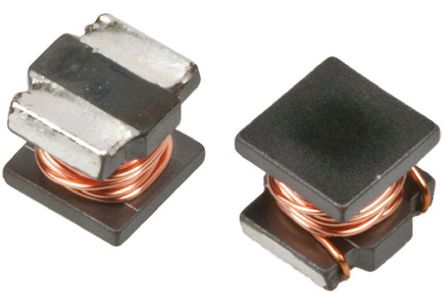

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 1mH Unshielded Wirewound Inductor 150mA 14.42Ohm Max 2220 (5750 Metric)
LQH55DN102M03L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 2220 |
| Current Rating | 150 mA |
| Capacitance Tolerance | ±20 % |
| Inductance | 1000 µH |
| Self Resonant Frequency | 1.7 MHz |
| Part Family | LQH |
| Inductance Tolerance | ±20 % |
| Test Frequency | 10 kHz |
| DC Resistance (DCR) | 14.42 Ω |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 10.3 Ω |
| Show | |
| Size-Length | 5.7 mm |
| Size-Width | 5 mm |
| Size-Height | 4.7 mm |
| Weight | 0.48 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 350 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
