Image is for your reference only,please check specifications for details

AD5320BRM - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1972208
Category:
Digital to Analog, DAC IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
2.7V to 5.5V, 140µA, Rail-to-Rail Voltage Output 12Bit DAC in SOT-23 and MicroSOIC Packages
Stock Locations:
Availability:
1,841 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details

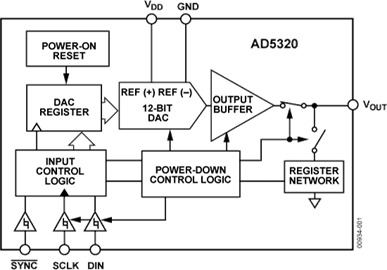

The AD5320 is a single, 12-bit buffered voltage out DAC that operates from a single +2.7 V to +5.5 V supply consuming 115 µA at 3 V. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The AD5320 utilizes a versatile three-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI ™,QSPI ™, MICROWIRE ™ and DSP interface standards.
**Product Highlights**
1. Available in 6-lead SOT-23 and 8-lead MicroSOIC packages
2. Low power, single supply operation from 2.7 V to 5.5 V
3. Consumes 0.35 mW at 3 V and 0.7 mW at 5 V
4. Rail-to-Rail output with a slew rate of 1 V/µs
5. Reference derived from the power supply
6. High speed serial interface with clock speeds up to 30 MHz
7. Pin and Software Compatible with the AD5300 (8-Bit) and the AD5310 (10-bit)
### Features and Benefits
Micropower: 140 µA @ 5 V, 115 µA @ 3 V
Power-Down to 200 nA @ 5 V, 50 nA @ 3 V
Guaranteed Monotonic by design
Power-On-Reset to Zero Volts
Three Power-Down Functions
SYNC(active low) Interrupt Facility
Low Power, SPI™, QSPI™, MICROWIRE™ and DSP-Compatible 3-Wire Serial Interface
Output Buffer Amplifier with Rail-to-Rail Operation
Temperature Range: -40°C to 105°C
Three Power-Down Functions

Show

AD5320BRM Specifications
