Description

The AD532JDZ is an internally trimmed monolithic Integrated Circuit Multiplier/Divider for use with multiplication, division, squaring, square rooting and algebraic computation. It guarantees a maximum multiplying error of ±1.0% and a ±10V output voltage without the need for any external trimming resistors or output op amp. Because the AD532 is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers and its monolithic construction provides significant advantages in size and reliability. It can be a direct replacement for other IC multiplier that requires external trim networks.
Pretrimmed to ±1.0%
No external components required
Guaranteed ±1.0% maximum 4-quadrant error

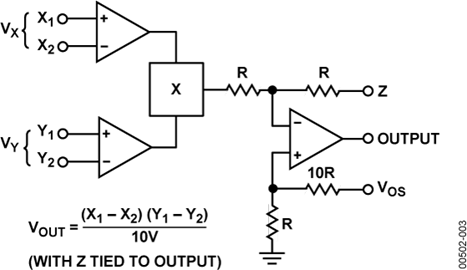

Differential inputs for (X1-X2) (Y1-Y2)/10V transfer function
Monolithic construction

Show

AD532JDZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP-14
Supply Voltage (DC)	10.0V (min)
Output Voltage	10 V
Supply Current	4 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	14 Position
Number of Bits	4 Bit
Slew Rate	45.0 V/μs
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	10.18 VDC
Supply Voltage (Max)	18 V
Supply Voltage (Min)	10 V
Input Voltage	10 V
	Show
Size-Length	19.94 mm
Size-Width	7.87 mm
Size-Height	5.08 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
