Description

Product Details
The AD532 is the first pretrimmed single chip monolithic multiplier/divider. It guarantees a maximum multiplying error of ±1.0% and a ±10 V output voltage without the need for any external trimming resistors or output op amp. Because the AD532 is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers, and its monolithic construction provides significant advantages in size, reliability and economy. Further, the AD532 can be used as a direct replacement for other IC multipliers that require external trim networks (such as the AD530).
### Features and Benefits
Pretrimmed to ±1.0% (AD532K)
No External Components Required
Guaranteed ±1.0% max 4-Quadrant
Error (AD532K)

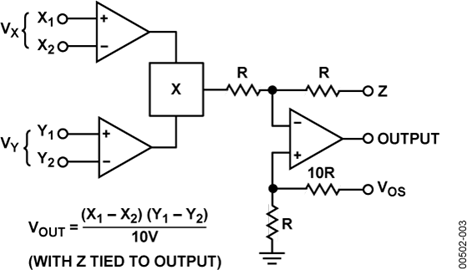

Diff Inputs for (X1 - X2) (Y1 - Y2)/10 V Transfer Function
Monolithic Construction, Low Cost

Show

AD532JHZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	10 Pin
Case/Package	TO-100-10
Supply Voltage (DC)	10.0V (min)
Output Voltage	10 V
Supply Current	6 mA
Number of Positions	10 Position
Number of Bits	4 Bit
Slew Rate	45.0 V/μs
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage (Max)	18 V
Supply Voltage (Min)	10 V
Input Voltage	10 V
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	4.7 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
