Description
- Product Details

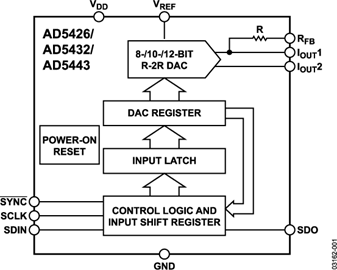

- The AD5426/AD5432/AD5443 are CMOS 8-, 10-, and 12-bit current output digital-to-analog converters (DACs), respectively. These devices operate from a 2.5 V to 5.5 V power supply, making them suitable for battery-powered applications and many other applications.
- These DACs use a double buffered, 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and most DSP interface standards. In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple packages are used. Data readback allows the user to read the contents of the DAC register via the SDO pin. On power-up, the internal shift register and latches are filled with 0s and the DAC outputs are at zero scale.
- As a result of manufacturing on a CMOS submicron process, the parts offer excellent 4-quadrant multiplication characteristics with large signal multiplying bandwidths of 10 MHz. The applied external reference input voltage, VREF, determines the full-scale output current. An integrated feedback resistor, RFB, provides temperature tracking and full-scale voltage output when combined with an external current to voltage precision amplifier.
- The AD5426/AD5432/AD5443 DACs are available in small, 10-lead MSOP packages.
- The EVAL-AD5443SDZ/EVAL-AD5446SDZ/EVAL-AD5453SDZ evaluation board is available for evaluating DAC performance. For more information, see the UG-327 evaluation board user guide.
- **Applications**
- Portable battery-powered applications
- Waveform generators
- Instrumentation
- Programmable amplifiers and attenuators
- Digitally controlled calibration
- Programmable filters and oscillators
- Composite video
- Ultrasound
- Gain, offset, and voltage trimming
- ### Features and Benefits
- 2.5 V to 5.5 V supply operation
- 50 MHz Serial Interface
- 10 MHz Multiplying Bandwidth
- 2.5 MSPS update rate
- INL of ±1 LSB for 12-bit DAC
- ±10 V reference input
- Low glitch energy < 2 nV-s
- Extended temperature range −40°C to +125°C
- 10-lead MSOP package
- Pin Compatible 8- (AD5426) and 10- (AD5432) Current Output DACs
- Guaranteed monotonic
- 4-quadrant multiplication
- Power-on reset with brownout detection
- Daisy-chain mode
- Readback function
- 0.4 μA typical power consumption
AD5443YRM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | MSOP-10 |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 3.00 µW |
| Sample Rate | 2.5 Msps |
| Resolution (Bits) | 12.0 Bit |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| ECCN Code | EAR99 |
