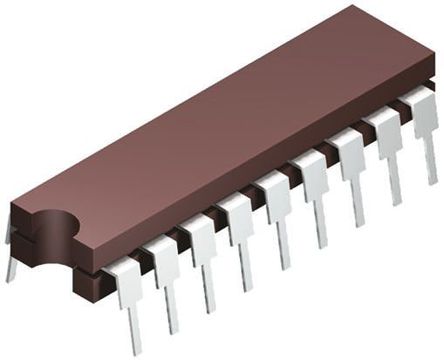

AD570JD - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1405863
Category:
Analog to Digital, ADC IC
Package:
CDIP-18
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD570JD Analog to Digital Converter, 8Bit, -16.5V, 4.5V, DIP
Stock Locations:
Availability:
258 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 220.22

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Taking a continuous analog signal and converting it to digital data is easy with Analog Devices" AD570JD ADC. This device is based on SAR architecture. Its maximum power dissipation is 800 mW. It has a single-ended input signal. This device"s digital interface is parallel. This ADC has a resolution of 8bit. This ADC has an input voltage of 10 V|±5V. Its typical dual supply voltage is -15/5 V, with a minimum of -12/4.5 V and maximum of -16.5/7 V. This ADC has a temperature range of 0 °C to 70 °C.

Show

AD570JD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	CDIP-18
Digital Logic Level	SAR
Supply Voltage (DC)	-16.5 V (min)
Supply Current	9.00 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Bits	8 Bit
Power Dissipation	800 W
Sample Rate	40 ksps
Resolution (Bits)	8.0 Bit
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	800 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	4.5 V
	Show
Size-Length	24.38 mm
Size-Width	7.62 mm
Size-Height	3.05 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
HK STC License	NLR
