AD605ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC353650
Category:
Amplifier, Buffer IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD605ARZ Programmable/Variable Amplifier, 2Channels, 1 Amplifier, 40MHz, -40℃, 85℃, 4.5V to 5.5V
Stock Locations:
Availability:
294 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.86

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

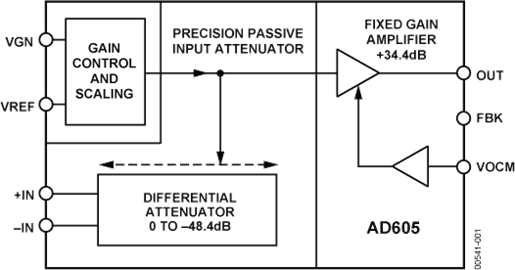

The AD605ARZ is a dual-channel low noise accurate linear-in-dB Variable Gain Amplifier (VGA) optimized for any application requiring high performance, wide bandwidth variable gain control. Operating from a single 5V supply, the AD605 provides differential inputs and unipolar gain control for ease of use. Added flexibility is achieved with user-determined gain range and an external reference input that provide user-determined gain scaling (dB/V). The high performance linear-in-dB response of the AD605 is achieved with the differential input, single-supply, exponential amplifier (DSX-AMP) architecture. Each of the DSX-AMPs comprises a variable attenuator of 0 dB to -48.4dB followed by a high speed, fixed-gain amplifier. The attenuator is based on a 7-stage R-1.5R ladder network. The attenuation between tap points is 6.908dB and 48.360dB for the entire ladder network.
2 Independent linear-in-dB channels
Differential inputs
Stable gain with temperature and supply variations
Single-ended unipolar gain control
Output common mode independently set
Power shutdown at lower end of gain control
Single 5V supply
Drives ADCs directly
20dB/V through 40dB/V Variable gain scaling
90mW/channel Low power

Show

AD605ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.50V (max)
Supply Current	18 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Power Dissipation	1.2 W
Common Mode Rejection Ratio	20 dB
Bandwidth	40 MHz
Slew Rate	170 V/μs
Gain Bandwidth Product	40 MHz
Gain	34.0 dB
Input Bias Current	400 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	40 MHz
Power Dissipation (Max)	90 mW
Minimum CMRR Range	20 dB
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
