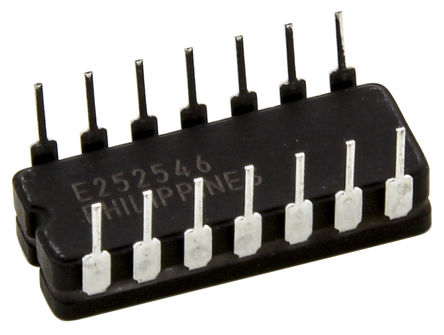

Image is for your reference only,please check specifications for details
- AD713AQ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC531871
-
Category:Operational Amplifier, OP Amp IC
-
Package:CDIP-14
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD713AQ Operational Amplifier, Quad, 4 Amplifier, 4MHz, 20V/µs, ± 4.5V to ± 18V, DIP, 14Pins
-
Stock Locations:
-
Availability:10,727 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 25.18
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD713 is a quad operational amplifier, consisting of four AD711 BiFET op amps. These precision monolithic op amps offer excellent dc characteristics plus rapid settling times, high slew rates, and ample bandwidths. In addition, the AD713 provides the close matching ac and dc characteristics inherent to amplifiers sharing the same monolithic die. The single-pole response of the AD713 provides fast settling: l µs to 0.01%. This feature, combined with its high dc precision, makes the AD713 suitable for use as a buffer amplifier for 12- or 14-bit DACs and ADCs. It is also an excellent choice for use in active filters in 12-, 14- and 16-bit data acquisition systems. Furthermore, the AD713 low total harmonic distortion (THD) level of 0.0003% and very close matching ac characteristics make it an ideal amplifier for many demanding audio applications. The AD713 is internally compensated for stable operation at unity gain.
- The AD713J is rated over the commercial temperature range of 0°C to 70°C. The AD713A is rated over the industrial temperature of −40°C to +85°C.
- ### Features and Benefits
- DC PERFORMANCE
- 1.5 mV maximum offset voltage
- 8 µV/°C typical drift
- 150 V/mV minimum open-loop gain
- 2 µV p-p typical Noise, 0.1 Hz to 10 Hz
- True 14-Bit Accuracy
- Single Version: AD711
- Dual Version: AD712
- Available in 16-lead SOIC, 14-lead P-DIP and Hermetic Cerdip Packages
- AC PERFORMANCE
- 1 µs Settling to 0.01% for 10 V Step
- 20 V/µs Slew Rate
- 0.0003% Total Harmonic Distortion (THD)
- 4 MHz Unity Gain Bandwidth
AD713AQ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | CDIP-14 |
| Supply Current | 10 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 14 Position |
| Common Mode Rejection Ratio | 72 dB |
| Input Capacitance | 5.50 pF |
| Bandwidth | 4 MHz |
| Slew Rate | 20.0 V/μs |
| Gain Bandwidth Product | 4 MHz |
| Input Impedance | 3.00 TΩ |
| Input Offset Voltage | 300 µV |
| Input Bias Current | 55 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 4 MHz |
| Gain Bandwidth | 4 MHz |
| Minimum CMRR Range | 72 dB |
| Show | |
| Size-Length | 19.94 mm |
| Size-Width | 7.87 mm |
| Size-Height | 3.56 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
