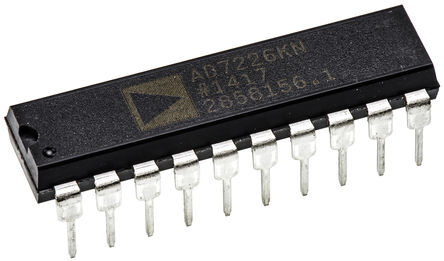

Image is for your reference only,please check specifications for details

AD7226KNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC615228
Category:
Digital to Analog, DAC IC
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7226KNZ Digital to Analog Converter, 8Bit, 143KSPS, Parallel, 11.4V to 16.5V, 14.25V to 15.75V, DIP
Stock Locations:
Availability:
454 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7226KNZ is an 8-bit voltage-output Digital-to-analog Converter with output buffer amplifiers and interface logic on a single monolithic chip. No external trims are required to achieve full specified performance for the part. Data is transferred into one of these data latches through a common 8-bit TTL/CMOS (5V) compatible input port. Control inputs A0 and A1 determine which DAC is loaded when WR goes low. The control logic is speed-compatible with most 8-bit microprocessors. The amplifier offset is laser-trimmed during manufacture, thereby eliminating any requirement for offset nulling. Specified performance is guaranteed for input reference voltages from 2 to 12.5V with dual supplies. It is fabricated in an all ion-implanted high speed Linear Compatible CMOS process, which has been specifically developed to allow high speed digital logic circuits and precision analog circuits to be integrated on the same chip.
Microprocessor-compatible
TTL/CMOS-compatible
No user trims
Extended temperature range operation
Single supply operation possible

Show

AD7226KNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Operating Voltage	11.4V ~ 16.5V
Number of Outputs	4 Output
Supply Current	13 mA
Number of Channels	4 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Power Dissipation	0.5 W
Sample Rate	143 ksps
Resolution (Bits)	8.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Number of DACs	4 DAC
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	11.4 V
	Show
Size-Length	26.16 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
