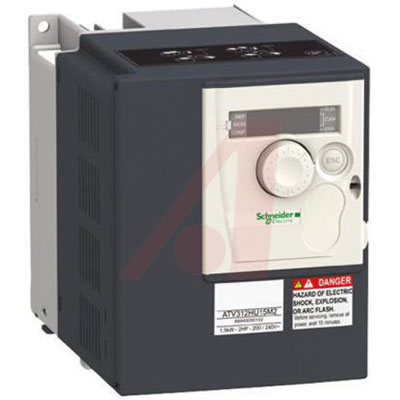

Image is for your reference only,please check specifications for details
- ATV312HU15M2 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC133459396
-
Category:Motors, Drive
-
Datasheet:Datasheet 3D Model
-
Description:"Schneider Electric / Square D ATV312HU15M2 AC Motor Drive 2 HP, 1.5kW, 8A, 240V, "
-
Stock Locations:
-
Availability:3 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 467.47
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ATV312HU15M2 is a 1-phase Altivar® 312 AC Motor Drive with heat sink. It is designed to make industrial and commercial machines more energy efficient, while at the same time simplifying its integration into single control system architecture, with the highest over torque and the only drive with a remote graphic keypad in its class. It also comes standard with integrated communications port for Modbus and CANopen networks and optional cards for CANopen Daisy Chain, DeviceNet and Profibus DP.
- Electrical between power and control insulation
- Frequency PI regulator
- 3.2kVA Apparent power
- 12A for 60s Maximum transient current
- 90W at nominal load Power dissipation
- 4kHz Nominal switching frequency
ATV312HU15M2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Current Rating | 15.8 A |
| Power Rating | 1.5 kW |
| Output Voltage | ≤240 V |
| Output Current | 8.00 A |
| Output Voltage (Max) | 240 V |
| Output Current (Max) | 8 A |
| Voltage Rating | 230 V |
| Supply Voltage | 200V ~ 240V |
| Supply Voltage (Max) | 240 VAC |
| Supply Voltage (Min) | 200 VAC |
| Show | |
| Size-Length | 143 mm |
| Size-Width | 107 mm |
| Size-Height | 143 mm |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
