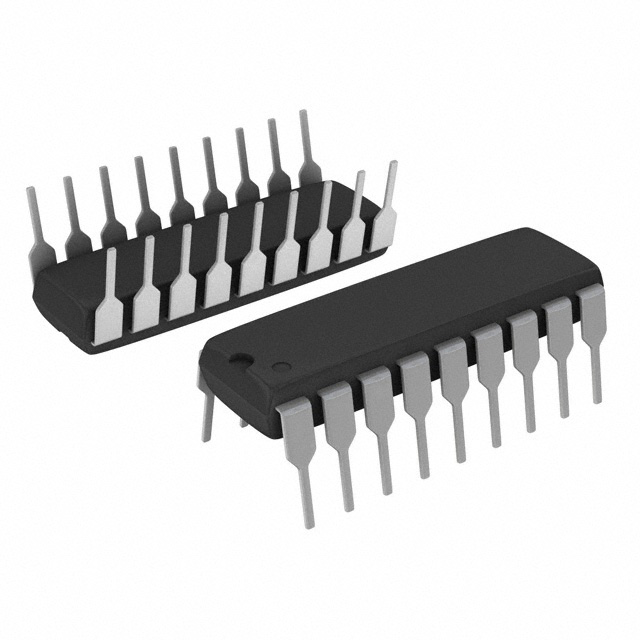

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 10-Bit, 12-Bit, Multiplying D/A Converters
- The AD7520 and AD7521 are monolithic, high accuracy, low cost 10-bit and 12-bit resolution, multiplying digital-to-analog converters (DAC). Intersil’s thin-film on CMOS processing gives up to 10-bit accuracy with TTL/CMOS compatible operation. Digital inputs are fully protected against static discharge by diodes to ground and positive supply.
- Features
- • AD7520, 10-Bit Resolution; 8-Bit Linearity
- • AD7521, 12-Bit Resolution; 10-Bit Linearity
- • Low Power Dissipation (Max). . . . . . . . . . . . . . . . . 20mW
- • Low Nonlinearity Tempco at 2ppm of FSR/oC
- • Current Settling Time to 0.05% of FSR . . . . . . . . . . 1.0µs
- • Supply Voltage Range . . . . . . . . . . . . . . . . . ±5V to +15V
- • TTL/CMOS Compatible
- • Full Input Static Protection
AD7521LN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 18 Pin |
| Case/Package | DIP-18 |
| Supply Current | 2.00 mA |
| Number of Bits | 12 Bit |
| Sample Rate | 1 Msps |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 20 mW |
| Number of DACs | 1 DAC |
| Show | |
| Size-Height | 4.95 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
