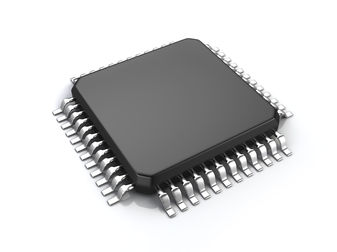

Image is for your reference only,please check specifications for details

AD7610BSTZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC3087415
Category:
Analog to Digital, ADC IC
Package:
LQFP-48
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7610BSTZ Analog to Digital Converter, 16Bit, 250KSPS, 4.75V, 5.25V, LQFP
Stock Locations:
Availability:
245 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 43.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7610BSTZ is a 16-bit charge redistribution successive approximation register (SAR), architecture Analog-to-digital Converter (ADC) fabricated on Analog Devices Inc, iCMOS high voltage process. The device is configured through hardware or via a dedicated write only serial configuration port for input range and operating mode. The AD7610 contains a high speed 16-bit sampling ADC, an internal conversion clock, an internal reference (and buffer), error correction circuits and both serial and parallel system interface ports. A falling edge on CNVST samples the analog input on IN+ with respect to a ground sense, IN-.
Pins or serial SPI®-compatible input ranges/mode selection
iCMOS™ process technology
On-chip temperature sensor
No pipeline delay
SPI™/QSPI™/MICROWIRE™/DSP compatible

Show

AD7610BSTZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Digital Logic Level	SAR
Supply Voltage (DC)	4.75V (min)
Operating Voltage	5 V
Supply Current	8 mA
Number of Circuits	1 Circuit
Number of Positions	48 Position
Number of Bits	16 Bit
Power Dissipation	90 mW
Sample Rate	250 ksps
Resolution (Bits)	16.0 Bit
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	110 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	15.75 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
