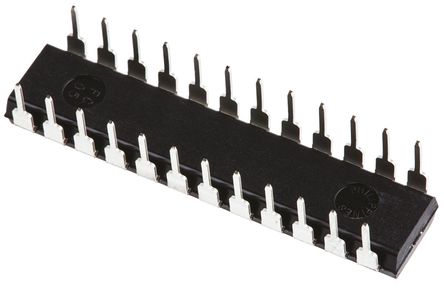

Image is for your reference only,please check specifications for details

AD767JNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1321600
Category:
Digital to Analog, DAC IC
Package:
DIP-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD767JNZ Digital to Analog Converter, 12Bit, 500KSPS, Parallel, ± 11.4V to ± 16.5V, DIP, 20Pins
Stock Locations:
Availability:
329 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 23.55

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD767JNZ is a complete voltage output 12-bit Digital-to-analog Converter including high stability buried Zener reference and input latch on a single chip. The converter uses 12 precision high-speed bipolar current steering switches and a laser-trimmed thin-film resistor network to provide high accuracy. Microprocessor compatibility is achieved by the on-chip latch. The design of the input latch allows direct interface to 12-bit buses. The latch responds to strobe pulses as short as 40ns, allowing use with the fastest available microprocessors. The functional completeness and high performance of the AD767 result from a combination of advanced switch design, high-speed bipolar manufacturing process and the proven laser wafer-trimming (LWT) technology. The subsurface Zener diode on the chip provides a low-noise voltage reference which has long-term stability and temperature drift characteristics comparable to the best discrete reference diodes.
Single chip construction
Monotonicity guaranteed over temperature
TTL/5V CMOS compatible logic inputs

Show

AD767JNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	24 Pin
Case/Package	DIP-24
Number of Outputs	1 Output
Supply Current	18 mA
Number of Channels	1 Channel
Number of Positions	24 Position
Number of Bits	12 Bit
Power Dissipation	1000 mW
Sample Rate	500 kHz
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1000 mW
Number of DACs	1 DAC
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	11.4 V
	Show
Size-Length	31.75 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
