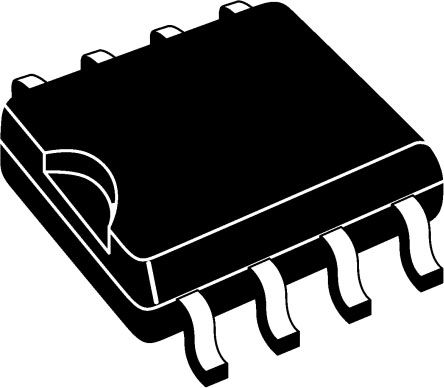

Image is for your reference only,please check specifications for details

AD8030ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC558761
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8030ARZ Operational Amplifier, Dual, 2 Amplifier, 125MHz, 60V/µs, 2.7V to 12V, SOIC, 8Pins
Stock Locations:
Availability:
1,250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.56

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8030ARZ is a low power dual High Speed Amplifier with rail-to-rail input and output. Despite their low power consumption, the amplifier provides excellent performance with 125MHz small signal bandwidth and 60V/µs slew rate. Analog Devices, Inc., proprietary XFCB process enables high speed and high-performance on low power. This family of amplifiers exhibits true single-supply operation with rail-to-rail input and output performance for supply voltages ranging from 2.7 to 12V. The input voltage range extends 200mV beyond each rail without phase reversal. The dynamic range of the output extends to within 40mV of each rail. The AD8030 provides excellent signal quality with minimal power dissipation. At G=+1, SFDR is -72dBc at 1MHz and settling time to 0.1% is only 80ns. Low distortion and fast settling performance make these amplifiers suitable drivers for single-supply analog-to-digital converters.
No phase reversal, inputs 200mV beyond rails
80ns Settling time to 0.1%
6mV Maximum offset voltage

Show

AD8030ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	12.6 V
Operating Voltage	2.7V ~ 12V
Supply Current	1.4 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	90 dB
Input Capacitance	2.00 pF
Bandwidth	125 MHz
Slew Rate	60.0 V/μs
Gain Bandwidth Product	40 MHz
Input Impedance	6.00 MΩ
Gain	1.00 dB
Input Offset Voltage	6 mV
Input Bias Current	1.7 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	125 MHz
Minimum CMRR Range	80 dB
Supply Voltage	2.7V ~ 12V
Supply Voltage (Max)	14 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
