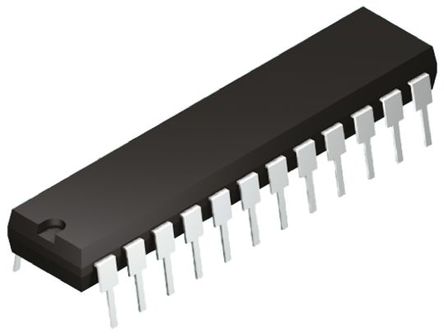

Image is for your reference only,please check specifications for details

AD7710ANZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC435900
Category:
Analog to Digital, ADC IC
Package:
DIP-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7710ANZ Analog to Digital Converter, 24Bit, 1.02KSPS, Single, 4.75V, 5.25V, DIP
Stock Locations:
Availability:
116 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.21

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7710ANZ is a complete analog front end signal conditioning Analog-to-digital Converter (ADC) for low frequency measurement applications. The device accepts low level signals directly from a strain gage or transducer and outputs a serial digital word. It employs a sigma-delta conversion technique to realize up to 24-bit of no missing codes performance. The input signal is applied to a proprietary programmable gain front end based around an analog modulator. The modulator output is processed by an on-chip digital filter. The first notch of this digital filter can be programmed via the on-chip control register, allowing adjustment of the filter cut-OFF and settling time. The part features two differential analog inputs and a differential reference input. Typically, one of the channels will be used as the main channel with the second channel used as an auxiliary input to measure a second voltage periodically.
Charge balancing
2-channel programmable gain front end
Ability to read/write calibration coefficients
Bidirectional microcontroller serial interface
Internal/external reference
Low power with power-down mode

Show

AD7710ANZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	24 Pin
Case/Package	DIP-24
Supply Voltage (DC)	4.75V (min)
Supply Current	4.50 mA
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	24 Position
Number of Bits	24 Bit
Power Dissipation	30 mW
Sample Rate	1 ksps
Power Consumption	30 mW
Resolution (Bits)	24.0 Bit
Input Capacitance	20.0 pF
Input Impedance	1.00 Ω
Number of ADCs	1 ADC
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	52.5 mW
Number of Input Channels	2 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	31.75 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2016/06/20
