Description
- Product Details
- The AD7846 is a 16-bit DAC constructed with the Analog Devices, Inc., LC2MOS process. It has VREF+ and VREF− reference inputs and an on-chip output amplifier. These can be configured to give a unipolar output range (0 V to +5 V, 0 V to +10 V) or bipolar output ranges (±5 V, ±10 V).

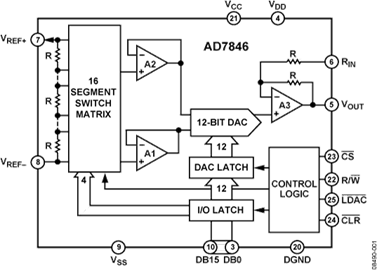

- The DAC uses a segmented architecture. The four MSBs in the DAC latch select one of the segments in a 16-resistor string. Both taps of the segment are buffered by amplifiers and fed to a 12-bit DAC, which provides a further 12 bits of resolution. This architecture ensures 16-bit monotonicity. Excellent integral linearity results from tight matching between the input offset voltages of the two buffer amplifiers.
- In addition to the excellent accuracy specifications, the AD7846 also offers a comprehensive microprocessor interface. There are 16 data I/O pins, plus control lines (CS, R/W, LDAC and CLR). R/W and CS allow writing to and reading from the I/O latch.
- This is the readback function, which is useful in ATE applications. LDAC allows simultaneous updating of DACs in a multi-DAC system and the CLR line will reset the contents of the DAC latch to 00…000 or 10…000 depending on the state of R/W.
- This means that the DAC output can be reset to 0 V in both the unipolar and bipolar configurations.
- The AD7846 is available in 28-lead plastic, ceramic, and PLCC packages.
- **Product Highlights**
- 1. 16-Bit Monotonicity
- The guaranteed 16-bit monotonicity over temperature makes the AD7846 ideal for closed-loop applications.
- 2. Readback
- The ability to read back the DAC register contents minimizes software routines when the AD7846 is used in ATE systems.
- 3. Power Dissipation
- Power dissipation of 100 mW makes the AD7846 the lowest power, high accuracy DAC on the market.
- ### Features and Benefits
- 16-bit monotonicity over temperature
- ±2 LSBs integral linearity error
- Microprocessor compatible with readback capability
- Unipolar or bipolar output
- Multiplying capability
- Low power (100 mW typical)
AD7846JN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | DIP-28 |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 1000 mW |
| Sample Rate | 143 ksps |
| Resolution (Bits) | 16.0 Bit |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 100 mW |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 15.75 V |
| Supply Voltage (Min) | 11.4 V |
| Show | |
| Size-Length | 39.75 mm |
| Size-Width | 14.73 mm |
| Size-Height | 4.95 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
