AD7846JNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC413745
Category:
Digital to Analog, DAC IC
Package:
PDIP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7846JNZ Digital to Analogue Converter, 16Bit, Parallel, 4.75V to 5.25V, ± 14.25V to ± 15.75V, DIP, 28Pins
Stock Locations:
Availability:
259 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

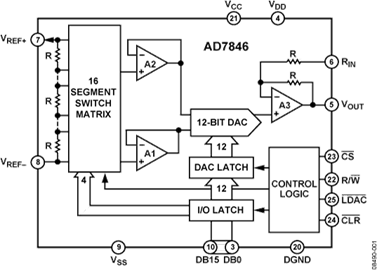

The AD7846JNZ is a LC²MOS 16-bit voltage output Digital-to-analog Converter (DAC) constructed with the Analog Devices Inc, process. It has VREF+ and VREF- reference inputs and an on-chip output amplifier. This can be configured to give unipolar output range or bipolar output ranges. The DAC uses a segmented architecture. The four MSBs in the DAC latch select one of the segments in a 16-resistor string. Both taps of the segment are buffered by amplifiers and fed to a 12-bit DAC, which provides a further 12-bit of resolution. This architecture ensures 16-bit monotonicity. Excellent integral linearity results from tight matching between the input offset voltages of the two buffer amplifiers. In addition to the excellent accuracy specifications, the AD7846 also offers a comprehensive microprocessor interface. R/W and CS allow writing to and reading from the I/O latch. This the read-back function, which is useful in ATE applications.
Microprocessor compatible with read-back capability
Multiplying capability
Low power

Show

AD7846JNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	PDIP-28
Number of Outputs	1 Output
Supply Current	5 mA
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	16 Bit
Power Dissipation	1000 mW
Sample Rate	143 ksps
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	100 mW
Number of DACs	1 DAC
Supply Voltage (Max)	15.75 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	36.83 mm
Size-Width	13.97 mm
Size-Height	4.07 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
