- AD7942BRMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1204377
-
Category:Analog to Digital, ADC IC
-
Package:MSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD7942BRMZ Analog to Digital Converter, 14Bit, 250KSPS, Single, 2.3V, 5.5V, MSOP
-
Stock Locations:
-
Availability:228 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.35
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details

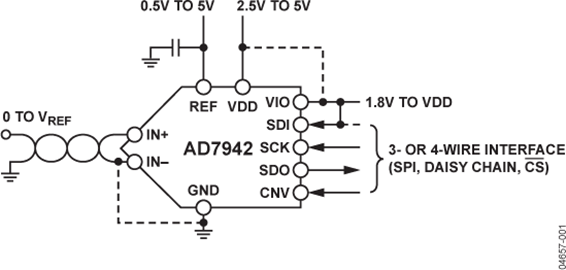

- The AD7942 is a 14-bit, charge redistribution, successive approximation PulSAR® ADC that operates from a single power supply, VDD, between 2.3 V to 5.5 V. It contains a low power, high speed, 14-bit sampling ADC with no missing codes, an internal conversion clock, and a versatile serial interface port. The part also contains a low noise, wide bandwidth, short aperture delay track-and-hold circuit. On the CNV rising edge, it samples an analog input, IN+, between 0 V to VREF with respect to a ground sense, IN−. The reference voltage, VREF, is applied externally and is set up to be the supply voltage. Its power scales linearly with the throughput.
- The SPI-compatible serial interface also features the ability, using the SDI input, to daisy-chain several ADCs on a single 3-wire bus and provides an optional busy indicator. It is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic using a separate supply (VIO).
- The AD7942 is housed in a 10-lead MSOP or a 10-lead LFCSP package yet fits in the same size footprint as the 8-lead MSOP or SOT-23. Operation for the AD7942 is specified from −40°C to +85°C.
- **Applications**
- Battery-powered equipment
- Data acquisition
- Instrumentation
- Medical instruments
- Process controls
- ### Features and Benefits
- 14-bit resolution with no missing codes
- Throughput: 250 kSPS
- INL: ±0.4 LSB typical, ±1 LSB maximum (±0.0061% of FSR)
- SINAD: 85 dB @ 20 kHz
- THD: −100 dB @ 20 kHz
- Pseudo differential analog input range
- 0 V to VREF with VREF up to VDD
- No pipeline delay
- See Data Sheet for Additional Information
AD7942BRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | MSOP-10 |
| Supply Voltage (DC) | 2.30V (min) |
| Supply Current | 1 nA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 10 Position |
| Number of Bits | 14 Bit |
| Power Dissipation | 3.6 mW |
| Sample Rate | 250 ksps |
| Power Consumption | 3.6 mW |
| Resolution (Bits) | 14.0 Bit |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 12.5 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage | 2.3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.3 V |
| Input Voltage | 5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
