Description
- Product Details
- The AD8000 is an ultrahigh speed, high performance, current feedback amplifier. Using Analog Devices, Inc., proprietary eXtra Fast Complementary Bipolar (XFCB) process, the amplifier can achieve a small signal bandwidth of 1.5 GHz and a slew rate of 4100 V/μs.
- The AD8000 has low spurious-free dynamic range (SFDR) of 75 dBc at 20 MHz and input voltage noise of 1.6 nV/√Hz. The AD8000 can drive over 100 mA of load current with minimal distortion. The amplifier can operate on +5 V to ±6 V. These specifications make the AD8000 ideal for a variety of applications, including high speed instrumentation.
- With a differential gain of 0.02%, differential phase of 0.01°, and 0.1 dB flatness out to 170 MHz, the AD8000 has excellent video specifications, which ensure that even the most demanding video systems maintain excellent fidelity.

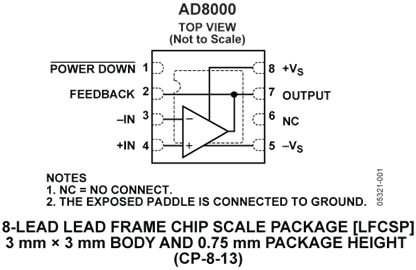

- The AD8000 power-down mode reduces the supply current to 1.3 mA. The amplifier is available in a tiny 8-lead LFCSP package, as well as in an 8-lead SOIC package. The AD8000 is rated to work over the extended industrial temperature range (−40°C to +125°C). A triple version of the AD8000 (AD8003) is underdevelopment.
- Applications
- Professional video
- High speed instrumentation
- Video switching
- IF/RF gain stage
- CCD imaging
- ### Features and Benefits
- High speed
- 1.5 GHz, −3 dB bandwidth (G = +1)
- 650 MHz, full power bandwidth (G = +2, VO = 2 V p-p)
- Slew rate: 4100 V/μs
- 0.1% settling time: 12 ns
- Excellent video specifications
- 0.1 dB flatness: 170 MHz
- Differential gain: 0.02%
- Differential phase: 0.01°
- Output overdrive recovery: 22 ns
- Low noise: 1.6 nV/√Hz input voltage noise
- Low distortion over wide bandwidth
- 75 dBc SFDR at 20 MHz
- 62 dBc SFDR at 50 MHz
- Input offset voltage: 1 mV typical
- High output current: 100 mA
- Wide supply voltage range: 4.5 V to 12 V
- Supply current: 13.5 mA
- Power-down mode
AD8000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | SOIC |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
