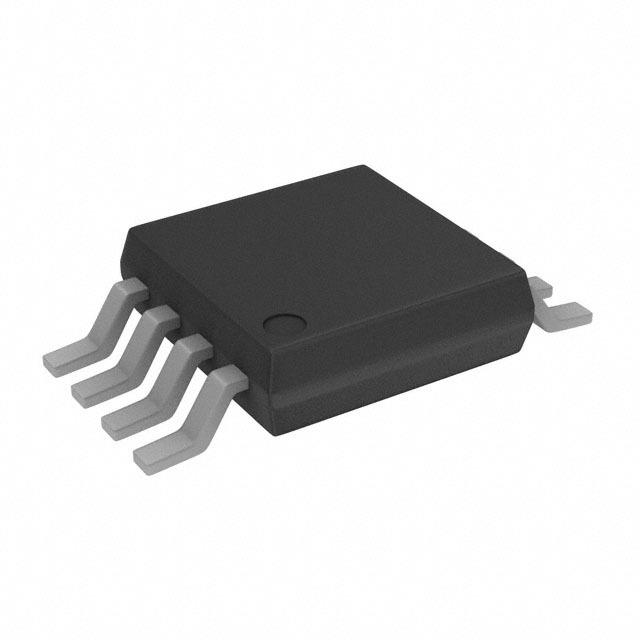

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The AD8021 is an exceptionally high performance, high speed voltage feedback amplifier that can be used in 16-bit resolution systems. It is designed to have both low voltage and low current
noise (2.1 nV/√Hz typical and 2.1 pA/√Hz typical) while operating at the lowest quiescent supply current (7 mA @ ±5 V) among today’s high speed, low noise op amps. The AD8021 operates
over a wide range of supply voltages from ±2.25 V to ±12 V, as well as from single 5 V supplies, making it ideal for high speed, low power instruments. An output disable pin allows further
reduction of the quiescent supply current to 1.3 mA.
FEATURES
Low noise
2.1 nV/√Hz input voltage noise
2.1 pA/√Hz input current noise
Custom compensation
Constant bandwidth from G = −1 to G = −10
High speed
200 MHz (G = −1)
190 MHz (G = −10)
Low power
34 mW or 6.7 mA typical for 5 V supply
Output disable feature, 1.3 mA
Low distortion
−93 dBc second harmonic, fC= 1 MHz
−108 dBc third harmonic, fC= 1 MHz
DC precision
1 mV maximum input offset voltage
0.5 μV/°C input offset voltage drift
Wide supply range, 5 V to 24 V
Low price
Small packaging
Available in SOIC-8 and MSOP-8
APPLICATIONS
ADC preamps and drivers
Instrumentation preamps
Active filters
Portable instrumentation
Line receivers
Precision instruments
Ultrasound signal processing
High gain circuits

Show

AD8021ARM Specifications
