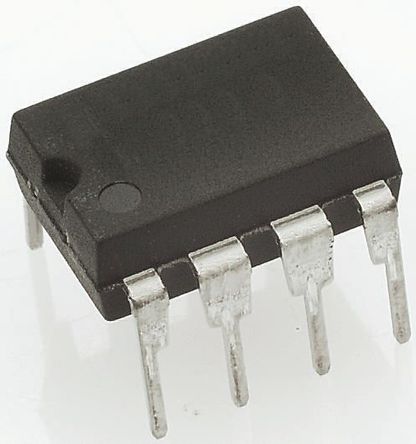

Image is for your reference only,please check specifications for details
- AD828ANZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC577542
-
Category:Video Amplifier, CATV Amplifier IC
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Video Amplifier, 2 Amplifiers, 130MHz, 450V/µs, -40℃, 85℃, 50mA
-
Stock Locations:
-
Availability:227 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 16.26
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD828 is a low cost, dual video op amp optimized for use in video applications which require gains of +2 or greater and high ouput drive capability, such as cable driving. Due to its low power and single supply functionality, along with excellent differential gain and phase errors, the AD828 is ideal for power sensitive applications such as video cameras and professional video equipment.
- With video specs like 0.1 dB flatness to 40 MHz and low differential gain and phase errors of 0.01% and 0.05°, along with 50 mA of output current per amplifier, the AD828 is an excellent choice for any video application. The 130 MHz gain bandwidth and 450 V/µs slew rate make the AD828 useful in many high speed applications including: video monitors, CATV, color copiers, image scanners and fax machines.
- The AD828 is fully specified for operation with a single +5 V power supply and with dual supplies from ±5 V to ±15 V. this power supply flexibility, coupled with a very low supply current of 15 mA and excellent ac characteristics under all power supply conditions, make the AD828 the ideal choice for many demanding yet power sensitive applications.
- The AD828 is a voltage feedback op amp which excels as a gain stage (gains>+2) or active filter and high speed video systems and achieves a settling time of 45 ns to 0.1%, with a low input offset voltage of 2 mV max.
- The AD828 is available in low cost, small 8-pin plastic mini-DIP and SOIC packages.
- ### Features and Benefits
- Excellent Video Performance Differential Gain and Phase Error of 0.01% and 0.05°
- High Speed 130 MHz 3 dB Bandwidth (G = +2) 450 V/µs Slew Rate 80 ns Settling Time to 0.01%
- Low Power 15 mA Max Power Supply Current
- High Output Drive Capability 50 mA Minimum Output Current per Amplifier Ideal for Driving Back Terminated Cables
- Flexible Power Supply
- Specified for +5 V,
- ±5 V, and ±15 V Operation ±3.2 V
- Min Output Swing into a 150 Ω
- Load(VS = ±5 V)
- Excellent DC Performance
- 2.0 mV Input Offset Voltage
- Available in 8-Lead SOIC and
- 8-Lead Plastic Mini-DIP
AD828ANZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Output Current | 50 mA |
| Supply Current | 14 mA |
| Number of Circuits | 2 Circuit |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 82 dB |
| Input Capacitance | 1.50 pF |
| Bandwidth | 130 MHz |
| Slew Rate | 450 V/μs |
| Gain Bandwidth Product | 45 MHz |
| Input Impedance | 300 kΩ |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 6600 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 130 MHz |
| Gain Bandwidth | 130 MHz |
| Minimum CMRR Range | 82 dB |
| Show | |
| Size-Length | 9.27 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
