- AD8361ARM - Analog Devices
-
Manufacturer:Analog Devices
-
ManyChip's Part#:MC1519118
-
Category:Detector ICs
-
Package:MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Интегральная схема детектора сигналов RF, диапазон частот от 100 МГц до 2,5 ГГц, входное напряжение от -17 дБм до 6 дБм, питание от 2,7 В до 5,5 В, форма корпуса MSOP-8
-
Stock Locations:
-
Availability:2,008 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 444.88
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Общие характеристики

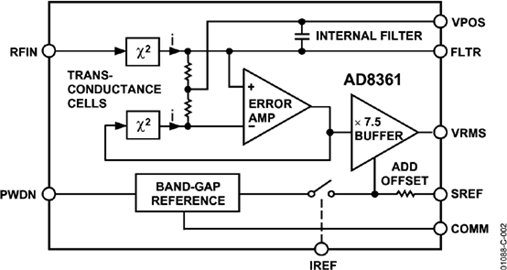

- AD8361 – это детектор сигналов среднего регулируемого спектра, предназначенный для использования в сходах приемников и передатчиков высоких частот до 2,5 ГГц. Его очень просто устанавливать: требуется одностороннее питание от 2,7 В до 5,5 В, конденсатор для разделения сигналов питания, а в большинстве приложений также необходим конденсатор для соединения с входом.
- Характеристики
- Калиброванный рms-ответ
- Отличная стабильность при высоких температурах
- Диапазон входных сигналов до 30 дБ при частоте 2,5 ГГц
- Максимальное значение входного сигнала: 700 мВрмс, 10 дБм при напряжении 50 Ом
- Линейный ответ до ±0,25 дБ при частоте 2,5 ГГц
- Работает при одном питании: от 2,7 В до 5,5 В
- Низкая энергопотребление: 3,3 мВт при напряжении 3 В
- Быстрое выключение сигнала до уровня менее 1 µА
AD8361ARM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Frequency | 100MHz ~ 2.5GHz |
| Supply Voltage (DC) | 2.70V (min) |
| Supply Current | 1.1 mA |
| Power Dissipation | 200 mW |
| Thermal Resistance | 200 ℃/W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 200 mW |
| Accuracy | ±0.25 dB |
| Supply Voltage | 2.7V ~ 5.5V |
| Show | |
| Size-Length | 3.00 mm |
| Size-Width | 3.00 mm |
| Size-Height | 0.85 mm |
| Size-Thickness | 1.10 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
| HK STC License | NLR |
