AD8370 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC760515845
Datasheet:
Datasheet 3D Model
Description:
750MHz Digitally Controlled Variable Gain Amplifier
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD8370 is a high performance, digitally controlled variable gain amplifier, designed to be used at IF frequencies within communication infrastructure equipment.
The part provides two gain control ranges that are controlled through a three wire digital interface, and allow the user to attain fine gain control for maximum receiver sensitivity.
The AD8370 has been fully specified for operation at common wireless IF frequencies 70 / 140 / 190 / 240 / 380MHz. The high output compression and fine gain control adjustability makes the AD8370 an ideal choice for to be used within digital receiver AGC circuits for GSM / CDMA2000 / W-CDMA cellular base stations.

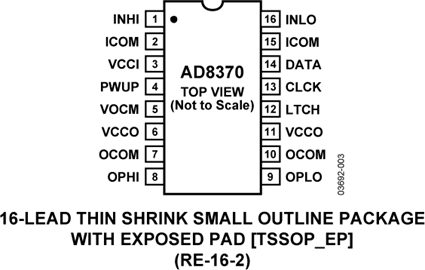

The AD8370 is fabricated on an advanced silicon bipolar process, operating on a single 3 or 5 volt supply, packaged in space saving 16-lead thin shrunk small outline (TSSOP) package and fully specified over the –40 to +85 C temperature range.
** Availability**
Samples AD8370ARU and an evaluation boards AD8370-EVAL are available.
Other Wireless VGA products:
AD8367 \- 45dB, 500MHz Single Ended, Analog Controlled VGA
AD8369 – 45dB, 600MHz Differential, 3dB Step Digitally Controlled VGA
### Features and Benefits
Low Frequency to 750MHz (-3dB bandwidth)
Output 1dB Compression Point +15.8dBm (70MHz)
Noise Figure 7dB
Single Supply 3V to 5V with Power Down
Fully Differential input and outputs
Three Wire Serial Digital Interface
Two Pin Selectable Gain Ranges,
Low Range –11dB to +17dB
High Range +6dB to +34dB
Output Third Order Interface
+35dBm (70MHz)

Show

AD8370 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
	Show
Product Lifecycle Status	Active
