Description
- Product Details

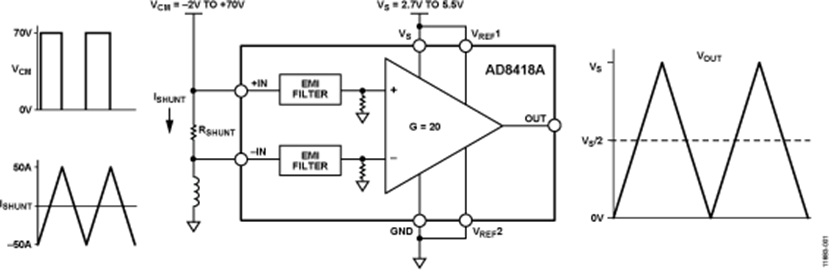

- The AD8418A is a high voltage, high resolution current shunt amplifier. It features an initial gain of 20 V/V, with a maximum ±0.15% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. The AD8418A offers excellent input common-mode rejection from −2 V to +70 V. The AD8418A performs bidirectional current measurements across a shunt resistor in a variety of automotive and industrial applications, including motor control, power management, and solenoid control.
- The AD8418A offers breakthrough performance throughout the −40°C to +150°C temperature range. It features a zero drift core, which leads to a typical offset drift of 0.1 μV/°C throughout the operating temperature range and the common-mode voltage range. The AD8418A is qualified for automotive applications. The device includes EMI filters and patented circuitry to enable output accuracy with pulse-width modulation (PWM) type input common-mode voltages. The typical input offset voltage is ±100 μV. The AD8418A is offered in 8-lead MSOP and SOIC packages.
- **Applications**
- High-side current sensing in
- Motor controls
- Solenoid controls
- Power management
- Low-side current sensing
- Diagnostic protection
- ### Features and Benefits
- Typical 0.1 µV/°C offset drift
- Maximum ±200 µV voltage offset over full temperature range
- 2.7 V to 5.5 V power supply operating range
- Electromagnetic interference (EMI) filters Included
- High common-mode input voltage range
- −2 V to +70 V continuous
- −4 V to +85 V survival
- Minimum DC common-mode rejection ratio (CMRR): 90 dB
- Initial gain = 20 V/V
- Wide operating temperature range:
- AD8418AWB: −40°C to +125°C
- AD8418AWH: −40°C to +150°C
- Bidirectional operation
- Available in 8-lead SOIC and 8-lead MSOP
- Qualified for automotive applications
AD8418ABRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Supply Current | 4.1 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 86 dB |
| Input Bias Current | 130 µA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 250 kHz |
| Minimum CMRR Range | 85dB ~ 95dB |
| Supply Voltage (Max) | 5V ~ 7V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Rail, Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status |
