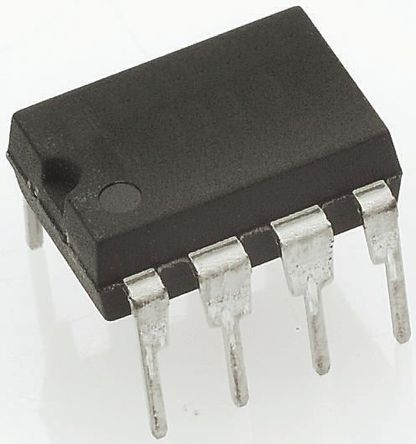

AD845KNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC421117
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD845KNZ Operational Amplifier, Single, 1 Amplifier, 16MHz, 100V/µs, ± 4.75V to ± 18V, DIP, 8Pins
Stock Locations:
Availability:
200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.48

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD845KNZ is a precision monolithic Operational Amplifier with N channel JFET input. It is fabricated using complementary bipolar (CB) process. Advanced laser-wafer trimming technology enables the very low input offset voltage and offset voltage drift performance to be realized. This precision, when coupled with a slew rate of 100V/ms, a stable unity gain bandwidth of 16MHz and a settling time of 350ns to 0.01%, while driving a parallel load of 100pF and 500R, represents a combination of features unmatched by any FET input IC amplifier. The AD845 can easily be used to upgrade many existing designs that use BiFET or FET input hybrid amplifier and in some cases, those which use bipolar input op amps. The AD845 is ideal for use in applications such as active filters, high speed integrators, photodiode preamps, sample-and-hold amplifiers, log amplifiers and for buffering A/D and D/A converters.
Settles to 0.01% in 350ns
0.25mV Maximum input offset voltage
5µV/°C Maximum offset voltage drift
0.5nA Input bias current
250V/mV Minimum open-loop gain
94dB Minimum CMRR

Show

AD845KNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	15.0 V
Supply Current	10 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1.6 W
Common Mode Rejection Ratio	94 dB
Input Capacitance	4.00 pF
Bandwidth	16 MHz
Slew Rate	100 V/μs
Gain Bandwidth Product	16 MHz
Input Impedance	100 GΩ
Input Offset Voltage	100 µV
Input Bias Current	500 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	16 MHz
Power Dissipation (Max)	1600 mW
Minimum CMRR Range	94 dB
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	9.27 mm
Size-Width	7.24 mm
Size-Height	3.43 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
