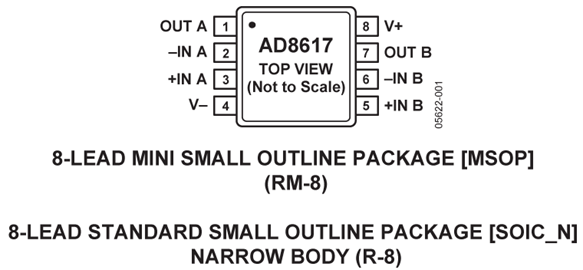

Image is for your reference only,please check specifications for details
- AD8617ARMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC335200
-
Category:Operational Amplifier, OP Amp IC
-
Package:MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD8617ARMZ Operational Amplifier, Dual, 2 Amplifier, 400kHz, 0.1V/µs, ± 900mV to ± 2.5V, 1.8V to 5V, MSOP
-
Stock Locations:
-
Availability:328 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.77
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD8613 / AD8617 / AD8619 are single, dual, and quad micropower, rail-to-rail input and output amplifiers that feature low supply current, as well as low input voltage and current noise. The parts are fully specified to operate from 1.8 V to 5 V single supply, or ±0.9 V and ±2.5 V dual supply. The combination of low noise, very low input bias currents, and low power consumption make the AD8613 / AD8617 / AD8619 especially useful in portable and loop-powered instrumentation.
- The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.
- The AD8613 is available in a 5-lead SC70 package and a 5-lead TSOT-23 package. The AD8617 is available in 8-lead MSOP, 8-lead SOIC, and 8-lead LFCSP packages. The AD8619 is available in 14-lead TSSOP and 14-lead SOIC packages. The AD8617W is qualified for automotive applications and is available in 8-lead MSOP and 8-lead SOIC packages. The AD8619W is qualified for automotive applications and is available in 14-lead SOIC and 14-lead TSSOP packages.
- Applications
- Battery-powered instrumentation
- Multipole filters
- Current shunt sense
- Sensors
- ADC predrivers
- DAC drivers/level shifters
- Low power ASIC input or output amplifiers
- ### Features and Benefits
- Offset voltage: 2.2 mV maximum
- Low input bias current: 1 pA maximum
- Single-supply operation: 1.8 V to 5.5 V
- Low noise: 22 nV/√Hz
- Micropower: 50 μA/amplifier maximum over temperature
- No phase reversal
- Unity gain stable
- Qualified for automotive applications
AD8617ARMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Supply Current | 38 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 95 dB |
| Input Capacitance | 2.50 pF |
| Bandwidth | 400 kHz |
| Slew Rate | 100 mV/μs |
| Gain Bandwidth Product | 400 kHz |
| Input Impedance | 2.00 TΩ |
| Input Offset Voltage | 400 µV |
| Input Bias Current | 0.2 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 0.4 MHz |
| Minimum CMRR Range | 95 dB |
| Supply Voltage (Max) | 5 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 3.2 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
