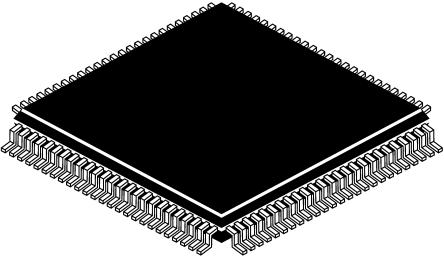

AD9858BSVZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC278700
Category:
Logic Controller, Logic IC
Package:
TQFP-100
Datasheet:
Datasheet 3D Model
Description:
Direct Digital Synthesizer 2000MHz 1-Digital to Analog Converter 10Bit Parallel/Serial 100Pin TQFP EP
Stock Locations:
Availability:
3,415 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.01

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9858BSVZ is a 1GSPS direct Digital Synthesizer featuring a 10-bit digital-to-analog converter (DAC) operating up to 1 GSPS. The AD9858 uses advanced DDS technology coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analog output sine wave at up to 400MHz. The AD9858 is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9858 via parallel (8-bit) or serial loading formats. The AD9858 contains an integrated charge pump (CP) and phase frequency detector (PFD) for synthesis applications requiring the combination of a high speed DDS along with phase-locked loop (PLL) functions. An analog mixer is also provided on chip for applications requiring the combination of a DDS, PLL and mixer, such as frequency translation loops and tuners.
Excellent phase noise and SFDR
Simplified 8-bit parallel and SPI serial control interface
Automatic frequency sweeping capability
Integrated programmable charge pump and phase frequency detector with fast lock circuit
Isolated charge pump supply up to 5V
Integrated 2GHz mixer
2W Typical power dissipation

Show

AD9858BSVZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	TQFP-100
Frequency	400 MHz
Supply Voltage (DC)	3.30 V
Number of Outputs	1 Output
Output Current	20 mA
Number of Positions	100 Position
Number of Bits	10 Bit
Power Dissipation	2500 mW
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2500 mW
Number of DACs	1 DAC
Supply Voltage	3.14V ~ 3.47V
Supply Voltage (Max)	3.465 V
Supply Voltage (Min)	3.135 V
	Show
Size-Length	14 mm
Size-Width	14 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
