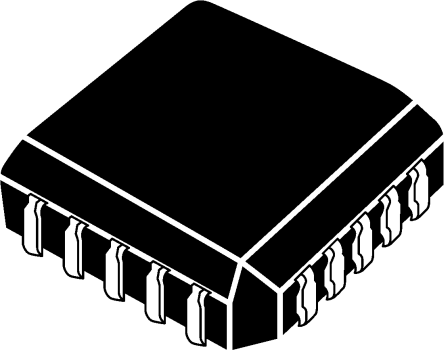

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9901KPZ is a Digital Phase/Frequency Discriminator capable of directly comparing phase/frequency inputs up to 200MHz. Processing in a high speed trench-oxide isolated process, combined with an innovative design, gives the AD9901 a linear detection range, free of indeterminate phase detection zones common to other digital designs. With a single +5V supply, the AD9901 can be configured to operate with TTL or CMOS logic levels, it can also operate with ECL inputs when operated with a -5.2V supply. The open-collector outputs allow the output swing to be matched to post-filtering input requirements. A simple current setting resistor controls the output stage current range, permitting a reduction in power when operated at lower frequencies. A major feature of the AD9901 is its ability to compare phase/frequency inputs at standard IF frequencies without prescalers. Excessive phase uncertainty which is common with standard PLL configurations is also eliminated.
Phase and frequency detection
Linear transfer function
No "dead zone"

Show

AD9901KPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PLCC-20
Frequency	200 MHz
Supply Voltage (DC)	7.00V (max)
Number of Outputs	1 Output
Supply Current	54 mA
Number of Circuits	1 Circuit
Number of Positions	20 Position
Power Dissipation	218 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	218 mW
Supply Voltage	5 V
Supply Voltage (Max)	7 V
	Show
Size-Length	9.04 mm
Size-Width	9.04 mm
Size-Height	3.68 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
